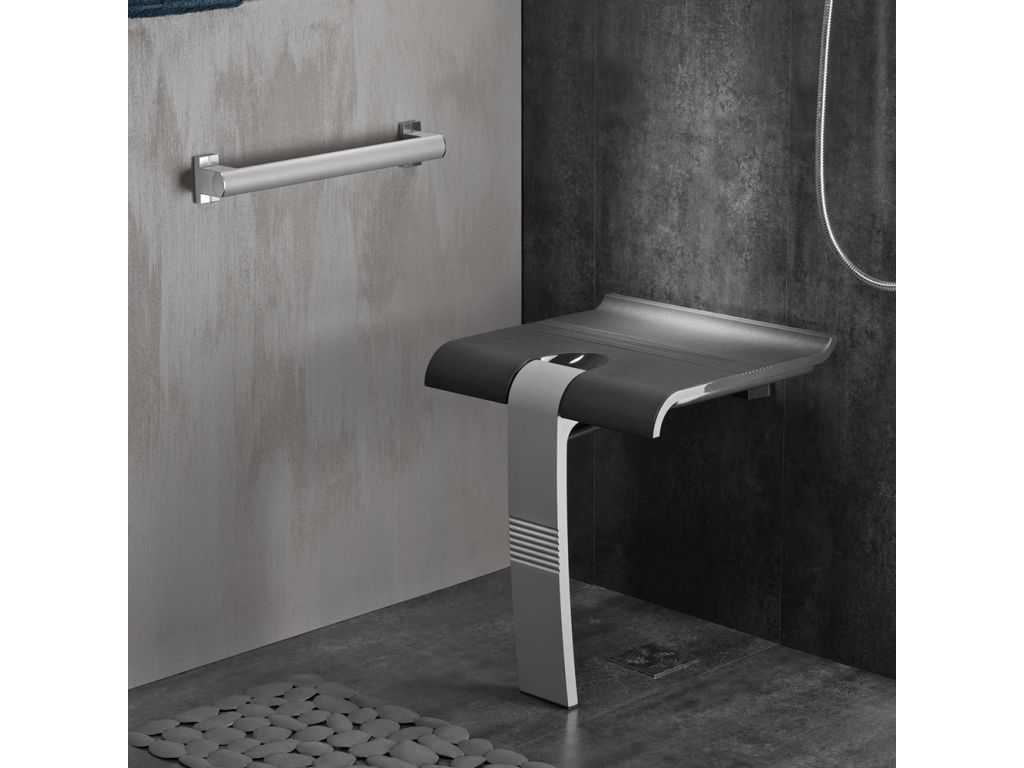

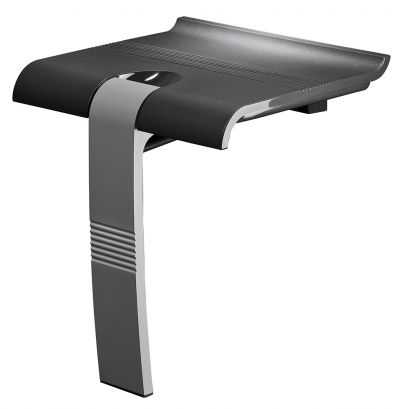

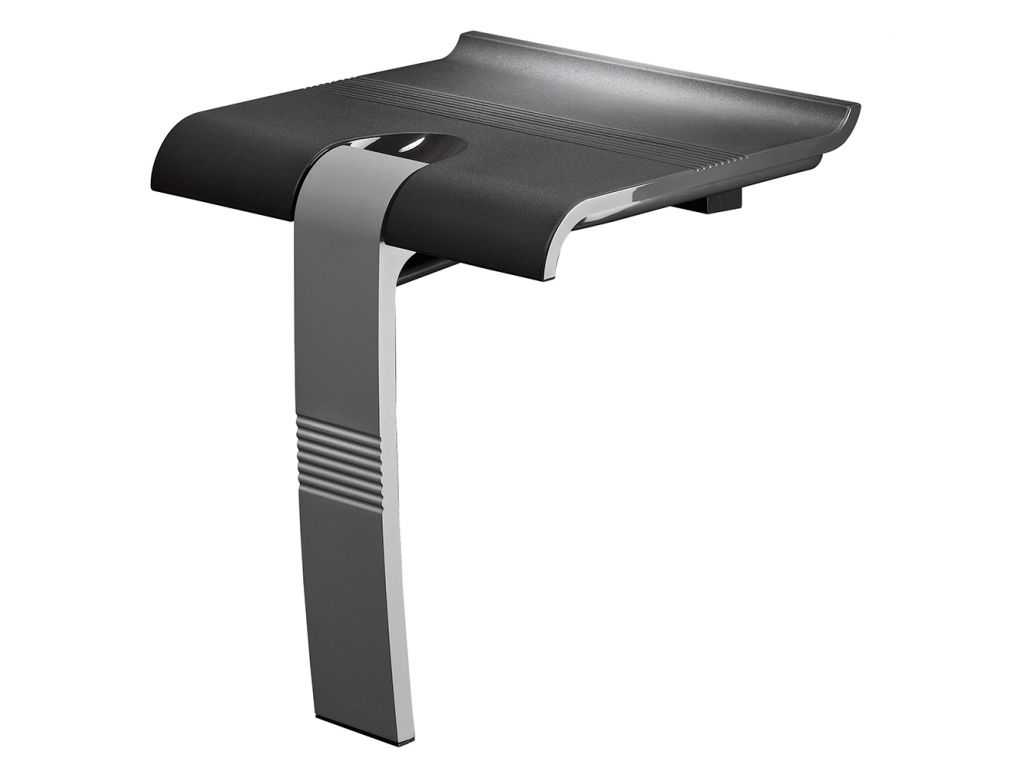

An innovative and unique product: can be unclipped to enable the mounting of the Design15 shower shelf.
Large size seat with a refined design for a maximum of comfort.
The ideal concept to transform its shower and make it accessible in complete safety.
With automatic stand.
Ergonomic 450 mm large size seat made of anthracite grey polymer.
Epoxy-coated aluminium structure (tube Ø 25 mm).
Locking position, tamper-proof lock.
Can be unclipped from its wall bracket for cleaning and occasional community use.
Can be replaced by a shower shelf ref. 147201 if the user doesnt need the seat.
Standard height: 500 mm.
Screws included.
Concealed fixings.
Design coordinated with the Design15 shower bars.
| Finish | Epoxy-coated |
| Color | Anthracite grey |
| Dimensions | 442 x 450 x 500 mm |
| Diameter Ø | 25 mm |
| Gross weight | 2.600 kg |
| Packaging | Printed cardboard box |
| CE Marking : safe load | 150 kg |
| Laboratory tests | 225 kg |
| Guarantee | 5 years |
| Gencod | 3111561358404 |
| Custom code | 7615200000 |
| Spécificité | The Design15 shower seat is only designed for a sanitary use. |
| Function | |
| Rest | |
| Characteristics | |
| Horizontal | |
| Vertical | |
| Corrosion resistant | |
| Type of Use | |
| Shower | |
| Cloakroom/Changeroom | |
| Location of Use | |
| Medical facilities | |
| ERP/IOP | |
| Hotels | |
| Private homes | |
| Workplaces | |
Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. The shower seat provides support and added safety if properly fitted in accordance with our technical instructions. For use in seated position. To guarantee the user safety, DO NOT rise up on the seat. When the seat is raised, DO NOT use it as a grab bar. To avoid any risks of pinching out, DO NOT put your fingers in the mobile parts. The product does not contains any dangerous substance for the health. We disclaim all liability for any personal injury resulting from inappropriate installation or use of this seat.
View all fixing and maintenance advicesMaintenance
IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning. CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
Ref: 134720
Standard size.
4 taupe (Pantone 7591U) polypropylene slats.
Grey epoxy-coated aluminium tube.
Enables users to sit down safely and comfortably while showering.
208,36 €
Ref: 134730
Standard size.
4 Cool Gray (Pantone 7U) polypropylene slats.
Grey epoxy-coated aluminium tube.
Enables users to sit down safely and comfortably while showering.
Ref: 134730
208,36 €
Ref: 135740
With automatic stand.
Ergonomic 450 mm large size seat made of anthracite grey polymer.
Epoxy-coated aluminium structure (tube Ø 25 mm).
Concealed fixings.
Standard height 500 mm.
Locking position, tamper-proof lock.
Can be unplugged from its wall bracket for cleaning and occasional community use.
Can be replaced by a shower shelf if the user doesnt need the seat.
Supplied with the shower shelf.
Ref: 135740
312,49 €
Ref: 147001
2 fixing points.
Symmetrical, 350 x 350 mm.
Elliptical tube in mat grey epoxy-coated aluminium, 38 x 25 mm.
Anthracite grey epoxy-coated resin flanges and cover plates.
Wall fixings included.
Design coordinated with the Design15 shower seat.
83,24 €
Ref: 147201
Anthracite grey polymer shelf. Wall-mounted model.
Supplied with its wall-mounted support: The shower shelf can be unclipped for fitting the shower seat.
Design coordinated with the Design15 shower bars.
Ref: 147201
39,42 €
Ref: 147301
Elliptical mat grey epoxy-coated aluminium tube, 38 x 25 mm.
Anthracite grey epoxy-coated resin tip.
Wall fixings not included.
Design coordinated with all Design15 Comfort items.
Ref: 147301
18,61 €
