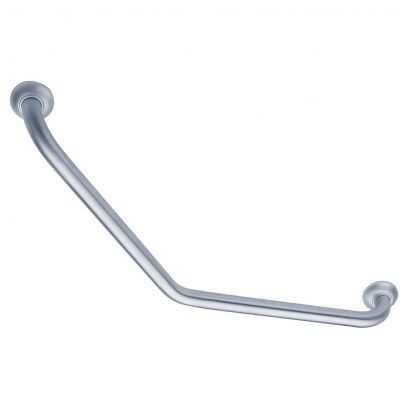

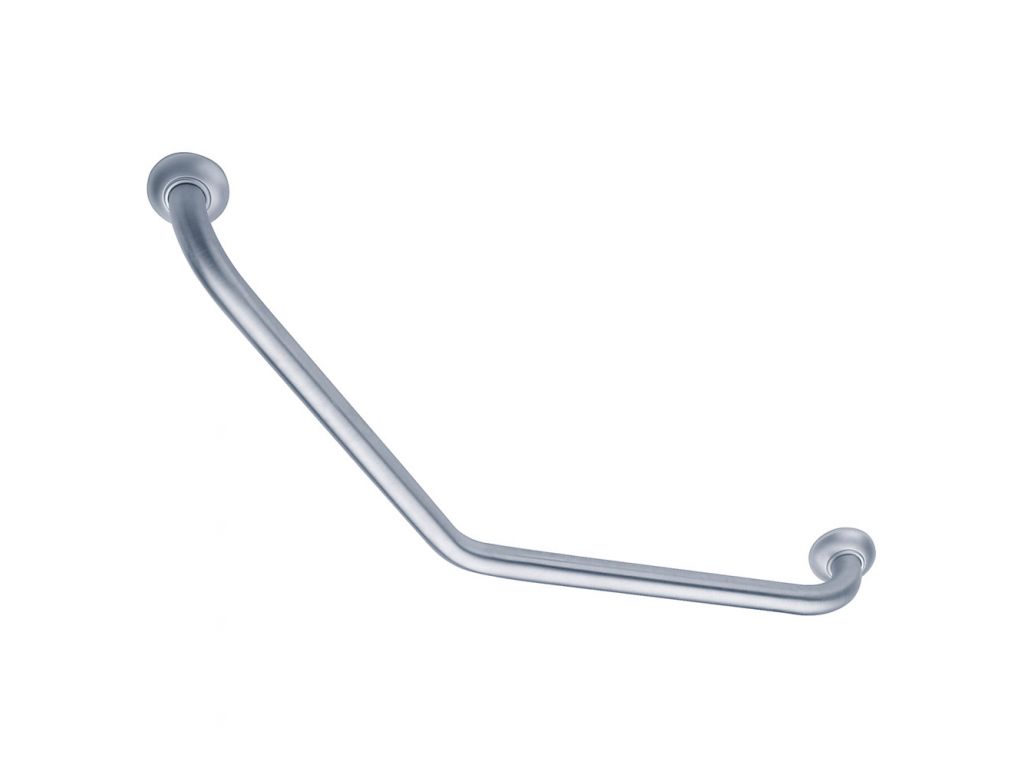

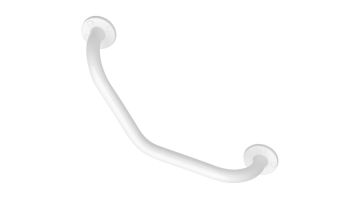

135° angled grab bar, White Epoxy-coated Steel, 225 x 225 mm, Ø 25 mm
Ref: 449841
Concealed fixings.
White epoxy-coated aluminium tube Ø 30 mm.
White resin flanges Ø 65 mm.
"General public" range.
23,17 €
Symmetrical.
Brushed 304 stainless steel tube Ø 30 mm.
One-piece bar.
Concealed fixings.
Mat chrome-plated resin cover plates Ø 65 mm.
Material | Stainless steel |
Finish | Brushed |
Dimensions | 265 x 265 mm |
Diameter Ø | 30 mm |
Gross weight | 0.910 kg |
Packaging | Plastic protection bag + Hanger for display |
Laboratory tests | 225 kg |
Guarantee | 5 years |
Gencod | 3111564955518 |
Custom code | 7324900010 |
Function | |
Support | |
Raising | |
Characteristics | |
Horizontal | |
Diagonal | |
Corrosion resistant | |
Type of Use | |
Bath | |
Shower | |
Toilet | |
Cloakroom/Changeroom | |
Location of Use | |
Medical facilities | |
ERP/IOP | |
Hotels | |
Private homes | |
Workplaces |
Recommended height for the horizontal part : 800 mm from the ground.##Grab bars provide support and added safety if properly fitted in accordance with our technical instructions.##Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory.##The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment.##Before drilling, physically hold the product against the wall at desired position and mark the hole locations.##All the fixing points must be respected.##After installation and before use, make sure that all fixing screws are tightened securely.##DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.
View all fixing and maintenance advicesMaintenance
IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning. CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
Notice | Aucune notice disponible |
