French
Know-How
Corrosion resistant warranty.

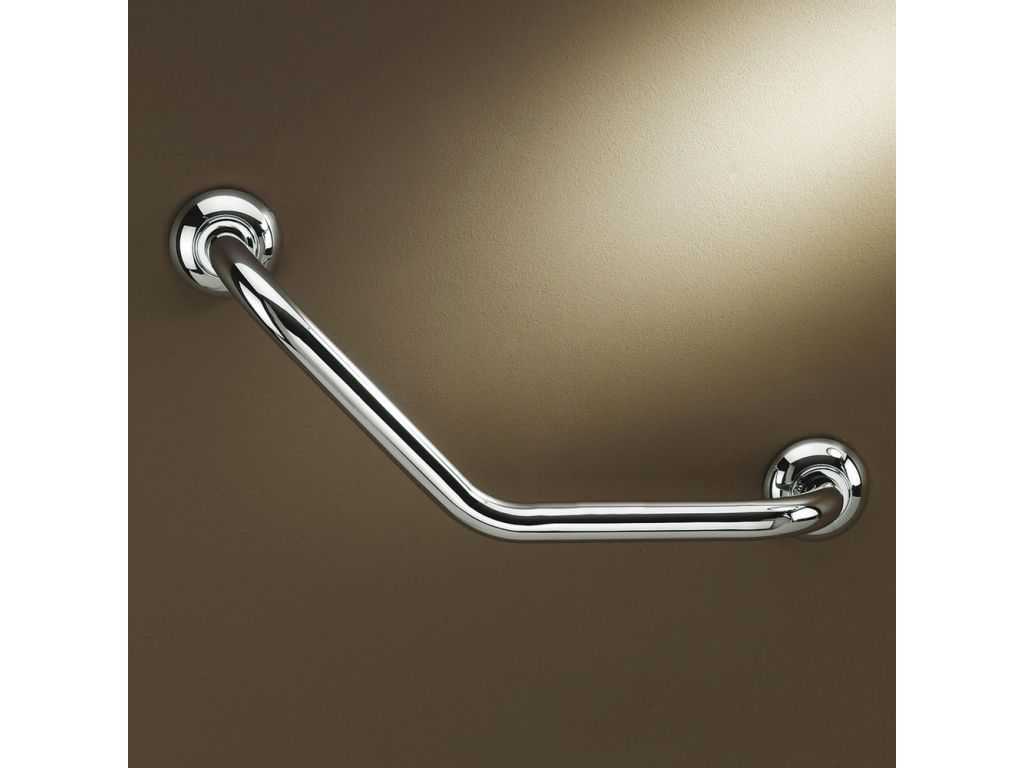

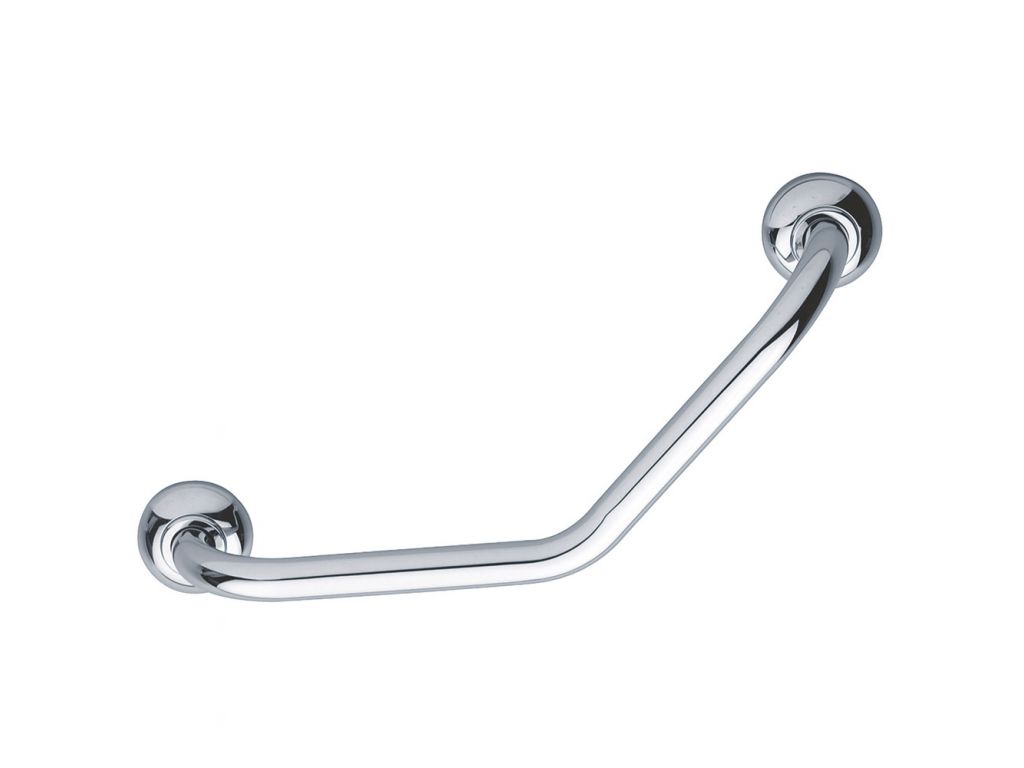

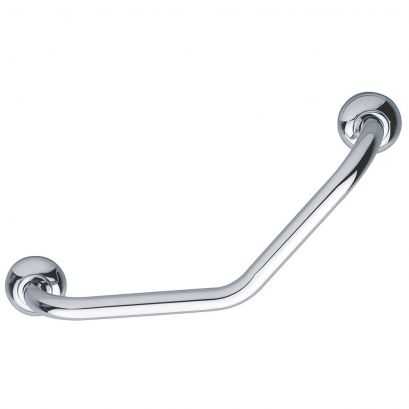

Symmetrical.
Concealed fixings.
Chrome and nickel-plated brass tube Ø 25 mm.
Bright chrome-plated resin flanges and cover plates.
"Professional" range.
Wall fixings included.
| Material | Brass |
| Finish | Chrome and nickel-plated |
| Dimensions | 200 x 200 mm |
| Diameter Ø | 25 mm |
| Gross weight | 0.350 kg |
| Packaging | Plastic protection bag + Hanger for display |
| Maximum Weight Capacity | 150 kg |
| Laboratory tests | 225 kg |
| Guarantee | 5 years |
| Gencod | 3111565498014 |
| Custom code | 7418200090 |
| Function | |
| Support | |
| Raising | |
| Characteristics | |
| Horizontal | |
| Diagonal | |
| Corrosion resistant | |
| Type of Use | |
| Bath | |
| Shower | |
| Toilet | |
| Cloakroom/Changeroom | |
| Location of Use | |
| Medical facilities | |
| ERP/IOP | |
| Hotels | |
| Private homes | |
| Workplaces | |
Recommended height for the horizontal part : 800 mm from the ground.##Grab bars provide support and added safety if properly fitted in accordance with our technical instructions.##Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory.##The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment.##Before drilling, physically hold the product against the wall at desired position and mark the hole locations.##All the fixing points must be respected.##After installation and before use, make sure that all fixing screws are tightened securely.##DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.
View all fixing and maintenance advicesMaintenance
IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning. CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
